23cm Portable EME

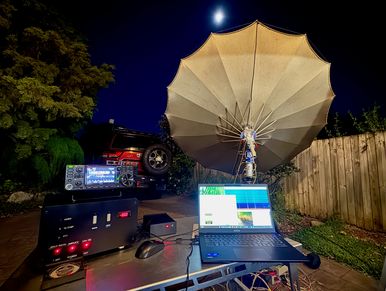

Sub Lunar Folding Dish

Astronomy radio setup outdoors at night under the moon.

2.4m folding dish from W2HRO at Sub Lunar. Weighs in at just 7kg. Is not weatherproof but can be covered during rain with a tarp while making do with some rum.

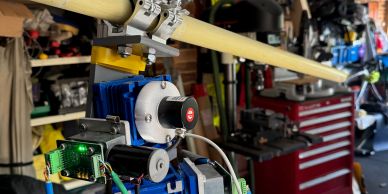

Sub Lunar az/el drive

Robot arm with sensors and electronics in workshop.

A small light simple drive that comprised two gear boxs and two small motors. Az and El encoders provide bearing and elevation data to the AnTrack Pro.

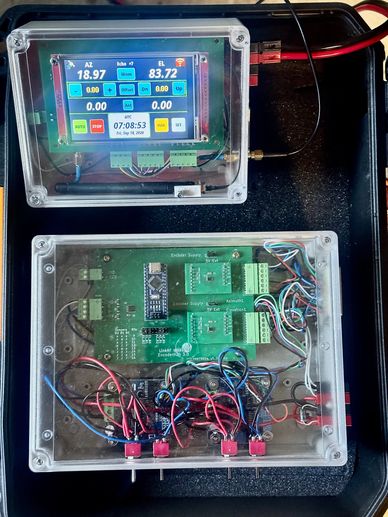

LinkRF AnTrack Pro

A digital measurement device and circuit board in transparent enclosures.

AnTrack Pro comprises an box at the operating position with an LCD powered by a regualr ESP32 board. At the antenna the encoder board talks to the az and el encoders and is powered by a Nano CPU as well as two bridges that drive the az/el motors

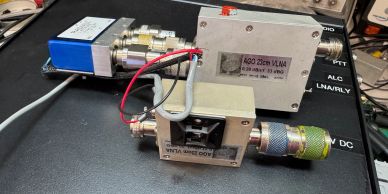

WD5AGO LNA

Electronic components with connectors and wiring on a black surface.

Tommy Henderson has made a set of LNA's for 23cm for me. The big one has additional filtering. The relay is for isolation during TX as the Septum feed only provides about 20dB isolation

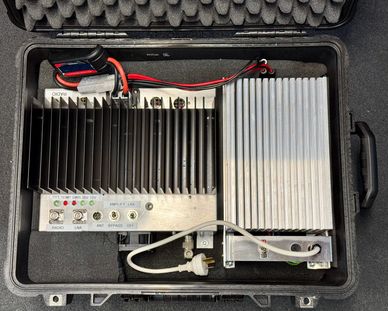

W6PQL PA

Electronic device with cooling fins in a protective case.

You cant go wrong with a W6PQL PA build.

IC9700

The IC-9700 does a good jobon Q65 and CW.
